Fat Bob Gas Tank Kit 3.5 Gallon

Retail Price: $404.46
VT No
38-0569

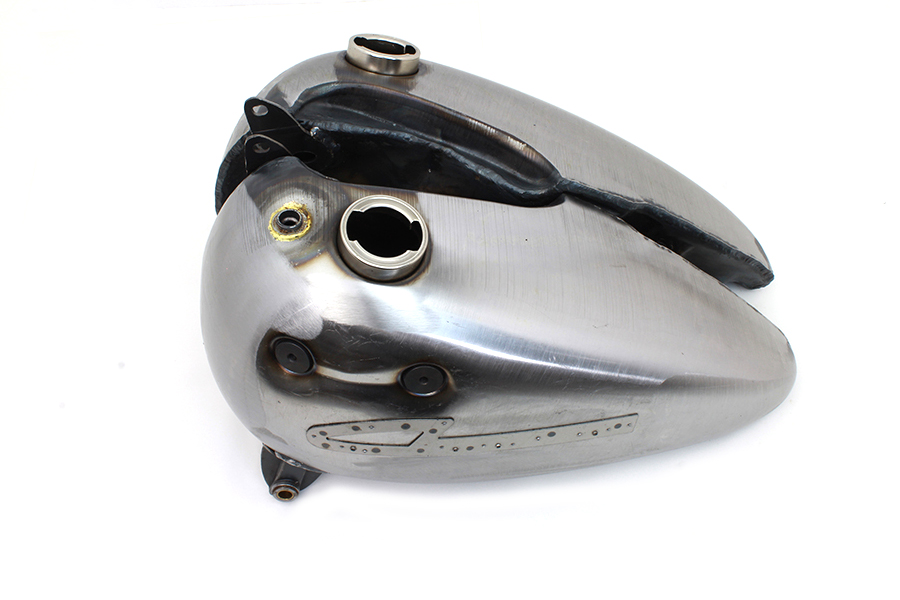

Bobbed gas tank kit includes a 3.5 gallon capacity gas tank set with emblem mounts welded in place, 1955-1956 emblems with screws, gas cap set, and a 4 speed shifter gate.
Bobbed gas tank kit includes a 3.5 gallon capacity gas tank set with emblem mounts welded in place, 1955-1956 emblems with screws, gas cap set, and a 4 speed shifter gate.
Shifter lever with ball and zinc gas tank mount kit are not included and must be purchased separately. Kit features provisions to accept reserve shut off rod, not included. Kit is for hand shift applicatons and will accept 3/8" NPT petcock with male threads, not included. Opening is on the left side forward on the tank. *NOTE: Check the shut off opening, making sure the shut off valve can be easily installed. The shut off fitting should be masked or plugged during painting for easy installation of the shut off valve. Check the tank for flaws and fit before painting. Do not grind or sand seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion. All tanks or tank sets require hand fitting to give correct alignment for dash and fuel line fitment. Dash will also have to be shimmed when installed, to achieve correct height. *NOTE: Fat Bob tanks is
More Information

FITS

FL 1948-1984
More Information
UOM1 - SET
ManufacturerWyatt Gatling
OriginImported
StyleBobbed
2025 Catalog Pages744
Replacement Items38-0890 - Bobbed 3.5 Gallon Gas Tank Set
38-7022 - OE Eagle Iron Emblem Set Die Cast
38-0312 - Stock Style Gas Cap Set Vented and Non-Vented
49-0075 - Left Side Tank Hand Shifter Gate
Tech Note
*NOTE: UPS may consider this part as packaged "oversize" forshipment, as compared to the actual weight, which will result in higher shipping costs.
