York FXD Rear Chain Drive Kit

Retail Price: $245.64
VT No
19-0174
FXD rear chain and sprocket kit is used to convert belt drive models to chain drives for 6 speeds. Supplied with all sprockets to provide stock gear ratios.
FXD rear chain and sprocket kit is used to convert belt drive models to chain drives for 6 speeds. Supplied with all sprockets to provide stock gear ratios.

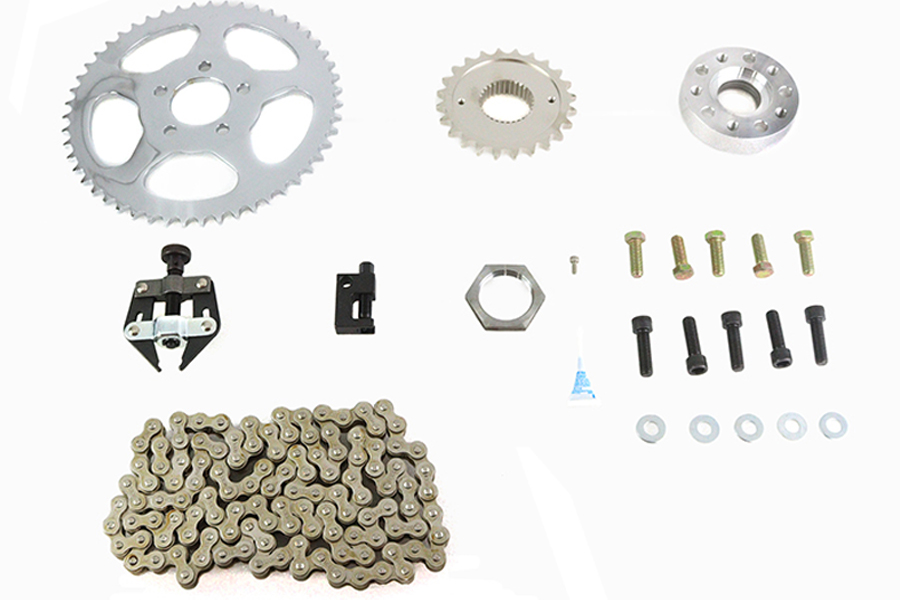

Kit includes 24 tooth front sprocket and 51 tooth offset rear sprocket, nickel plated 120 link chain, and rear sprocket spacer. *NOTE: 530 120 link heavy duty york chain included, with chain breaker so installer can cut chain to desired length for each application. Cut chain to fit with the wheel and axle all the way forward, for maximum adjustment as the chain wears in. *NOTE: For use with tires up to 180 wide.
More Information

FITS

FXD 2006-2017
FXDWG 2006-2017
More Information
UOM1 - KIT
ManufacturerYork
OriginImported
2022 Catalog Pages212
Replacement Items19-0610 - Transmission Sprocket 24 Tooth
19-0943 - York 530 x 120 Link Chain
20-0144 - Pulley Brake Disc Spacer Alloy 7/8" Thickness
19-0250 - 51 Tooth Rear Sprocket Chrome
Tech Note
*NOTE: Includes gold type (rust resistant) 120 link drive chain with master link. Installer must cut to desired length. Use chain puller to bring to length, then break at link.
