Stellings and Hellings Riser Set
Retail Price: $193.39
VT No
49-1927
Hellings & Stellings style riser set will accept 1" handlebars and will fit with an original spring fork handlebar cut down from stock. Set is natural finish cast stainless steel.
Hellings & Stellings style riser set will accept 1" handlebars and will fit with an original spring fork handlebar cut down from stock. Set is natural finish cast stainless steel.
The Stellings and Hellings riser set are reproduced accurately from investment cast stainless steel. Riser mounting will require a stock set of handlebars to be cut down so there is a short stub remaining to accept the risers, the bar stub will be 1". The riser set is offset to mount to the bar end studs to make the riser stems parallel when installed. V-Twin offers a top tree with stubs as an alternative to cutting down a set of Spring Fork bars. Risers are cast of stainless steel, machined to specs and then polished. you will need the stock handlebar cut down to 11" overall width. Please measure twice, cut once!
The Stellings and Hellings riser set are reproduced accurately from investment cast stainless steel. Riser mounting will require a stock set of handlebars to be cut down so there is a short stub remaining to accept the risers, the bar stub will be 1". The riser set is offset to mount to the bar end studs to make the riser stems parallel when installed. V-Twin offers a top tree with stubs as an alternative to cutting down a set of Spring Fork bars. Risers are cast of stainless steel, machined to specs and then polished. you will need the stock handlebar cut down to 11" overall width. Please measure twice, cut once!
FITS | EL 1936-1942 G 1936-1957 UL 1936-1948 FL 1941-1948 W 1936-1952 |
---|
UOM | 1 - SET | |
---|---|---|
Measurements |
| |
Manufacturer | V-Twin | |
Origin | Imported | |
Size | 3-1/2 inch | |
Style | Straight | |
2025 Catalog Pages | 787 | |

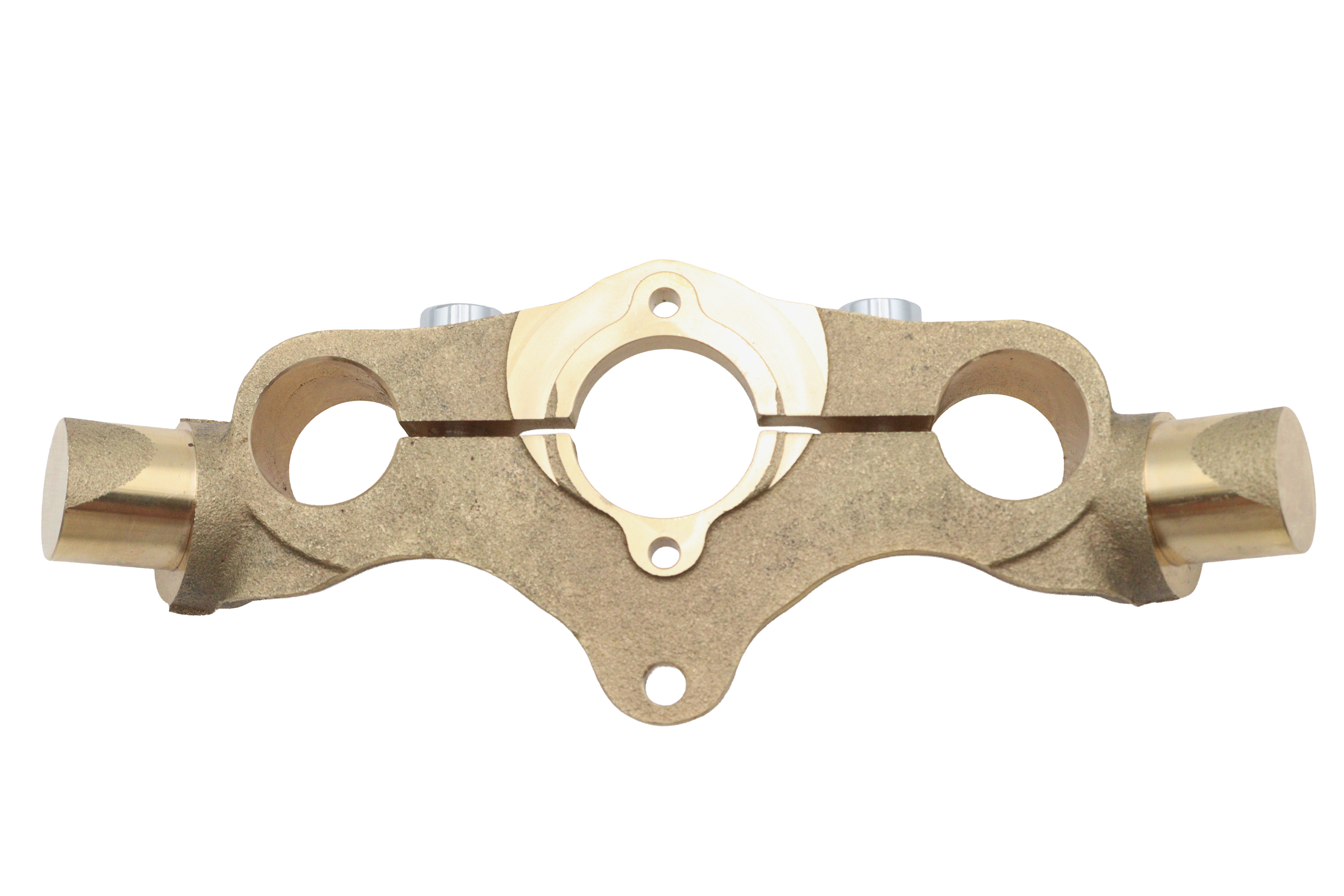

Tech Note | Suggested to use with #25-1254 Hex Type Handlebar Riser Bolt Set. Suggested to use with #49-0825 Spring Fork Inline Rise Clamp Suggested to use with #49-1163 Offset Spring Fork Top TripleTree. |
