Replica "HM" Straight Leg Rigid Frame
Retail Price: $2,015.63
VT No
51-1955

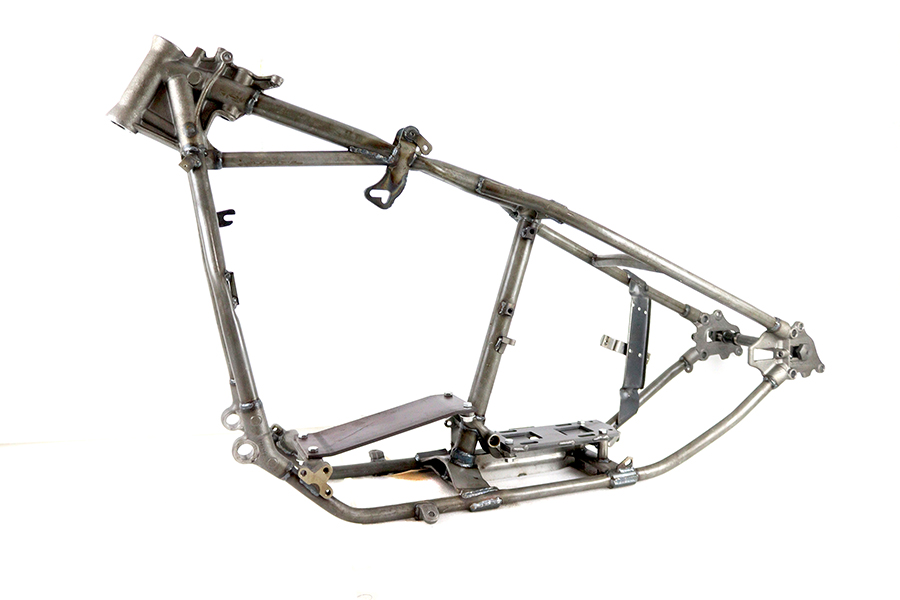

Replica "HM" straight leg rigid frame is an authentic reproduction of the 1954-1957 straight leg frame with stock 30° neck rake.
Replica "HM" straight leg rigid frame is an authentic reproduction of the 1954-1957 straight leg frame with stock 30° neck rake.

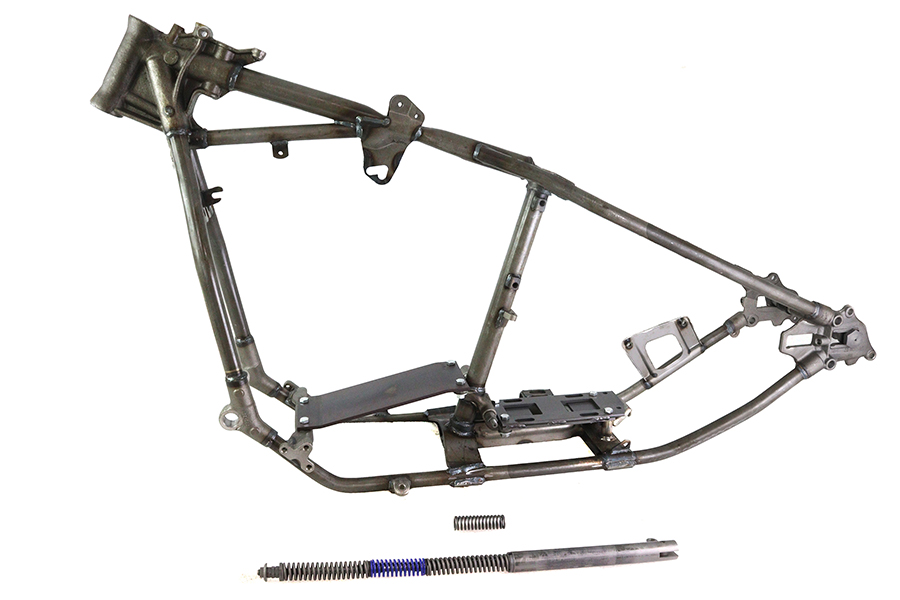

Features cross tube to accept mechanical rear brake assembly with a star hub wheel with chain drive. Forged parts include: neck, front and rear engine mount, side car mounts, top seat yoke, and footboard tabs. This mechanical frame will accept a neck lock. Front engine mount spacer will allow installation of a Knucklehead or Flathead engine. Frame will accept all Panhead and Shovelhead engines. *NOTE: Cross shaft, seat post, transmission plate and rear axle assembly are included. *NOTE: Must order tapered bearing neck cups separately. *NOTE: This "HM" type has forgings with original markings. V-Twin MFG supplys a Bill of Sale only referencing the part number. *NOTE: V-Twin replica frame now has forged parts with hallmark numbers and marks in these positions: seat yoke, side car loops, rear axle plates and transmission front and rear motor mounts.
Features cross tube to accept mechanical rear brake assembly with a star hub wheel with chain drive. Forged parts include: neck, front and rear engine mount, side car mounts, top seat yoke, and footboard tabs. This mechanical frame will accept a neck lock. Front engine mount spacer will allow installation of a Knucklehead or Flathead engine. Frame will accept all Panhead and Shovelhead engines. *NOTE: Cross shaft, seat post, transmission plate and rear axle assembly are included. *NOTE: Must order tapered bearing neck cups separately. *NOTE: This "HM" type has forgings with original markings. V-Twin MFG supplys a Bill of Sale only referencing the part number. *NOTE: V-Twin replica frame now has forged parts with hallmark numbers and marks in these positions: seat yoke, side car loops, rear axle plates and transmission front and rear motor mounts.
FITS | FL 1948-1984 Custom application |
|---|
| UOM | 1 - EA |
|---|---|
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 631 |
| Replacement Items | 51-4857 - Front Engine Mount Frame Brace 10-1288 - Bronze Seat Post Bushings |
| Tech Note | In some instances it may be necessary to ream or file holes slightly in order to assemble parts onto the frame. Use #31-0475 Front Engine Mount Spacer to accept 1936-1947 Kucklehead or Flathead engines in 1948 - up frames. Features #31-0528 Replica Tool Box Mounting Bracket. *NOTE: Replica "HM" is our updated version with forging hallmarks on many of the components. *NOTE: Features the following forged parts with HallMark numbers and marks: seat yoke, front motor mount, side car loops, rear axle plates and transmission front/rear mounts. Required to use with #24-0121 Zinc Fork Neck Cup Set with Races. |
