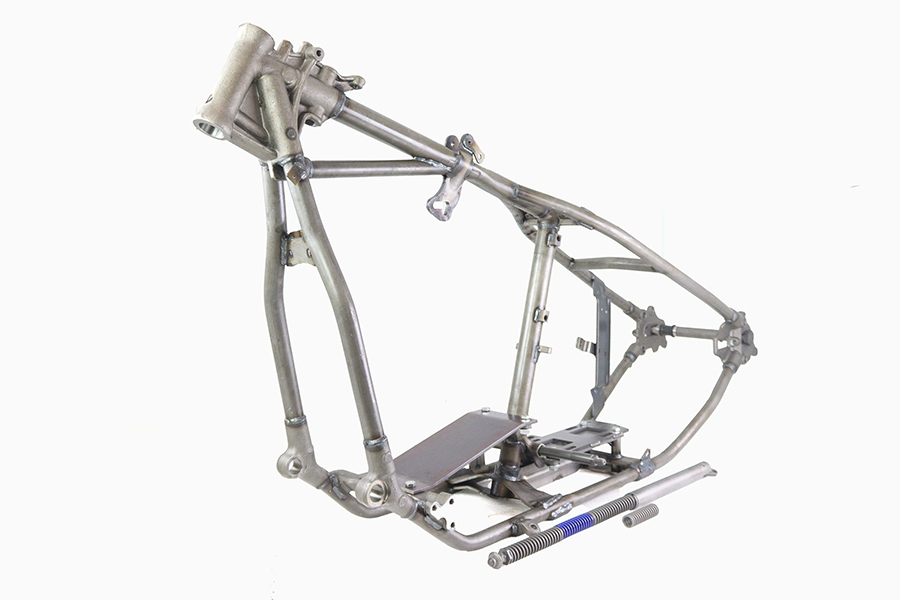

Replica Retro Wishbone 30° Rake Frame
Retail Price: $1,783.30
VT No
51-0097
Replica retro wishbone frame original style is updated to accept flat side tanks. Original forged parts include: neck, side car mounts and rear axle area. For all Big Twin engines with 4, 5 or 6 speed transmission.
Replica retro wishbone frame original style is updated to accept flat side tanks. Original forged parts include: neck, side car mounts and rear axle area. For all Big Twin engines with 4, 5 or 6 speed transmission.
Includes seat post, transmission mount plate for 4-speed transmission, and rear axle. Accepts Panhead, Shovelhead, Evolution and Twin Cam engines but will require a tin inner primary. Accepts 1986-1999 FXST gas tanks and chain final drive. Frame has a +2" raised neck and 9-1/8" between the axle plates. Supplied with the frame is the brake cross shaft for mechanical brakes and stock rear axle plate for use of the star hub wheel and mechanical brakes. The frame is taller in the engine compartment to house the Evolution and Twin Cam motors. Can also be used with rigid mount 5 and 6 speed transmissions. Retro V-Twin rigid frame accepts solid mount TC-88 engines, using steel motor mount, available separately. Accepts a 140mm rear tire. Frame may require modification to the motor mount holes for correct alignment and for clearance in the front rocker box area. Suggested to pre-assemble with inner primary, transmission and rear mount adapter on TC-88 type motors.
Includes seat post, transmission mount plate for 4-speed transmission, and rear axle. Accepts Panhead, Shovelhead, Evolution and Twin Cam engines but will require a tin inner primary. Accepts 1986-1999 FXST gas tanks and chain final drive. Frame has a +2" raised neck and 9-1/8" between the axle plates. Supplied with the frame is the brake cross shaft for mechanical brakes and stock rear axle plate for use of the star hub wheel and mechanical brakes. The frame is taller in the engine compartment to house the Evolution and Twin Cam motors. Can also be used with rigid mount 5 and 6 speed transmissions. Retro V-Twin rigid frame accepts solid mount TC-88 engines, using steel motor mount, available separately. Accepts a 140mm rear tire. Frame may require modification to the motor mount holes for correct alignment and for clearance in the front rocker box area. Suggested to pre-assemble with inner primary, transmission and rear mount adapter on TC-88 type motors.
FITS | Custom Application |
|---|
| UOM | 1 - EA |
|---|---|
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 635 |
| Tech Note | Suggested to use with #31-0913 Front Seat Mount which mounts to two dowels between the tank to connect the seat T. *NOTE: If you are using a seat post, remember the seat post tube has a bend in it to accept the Evolution or Twin Cam motors. It will be necessary to shorten the tube portion of the seatpost, but still connect the rod to lower frame bracket. *NOTE: There are no serial numbers stamped on the replica frame. V-Twin supplys a Bill of Sale only, referencing the part number. *NOTE: UPS may consider this part as packages "oversize" forshipment, as compared to the actual weight, which will result in higher shipping costs. *NOTE: Seat post may require further reaming for proper fit. |
