Burkhardt Magneto Retard Kit

Retail Price: $136.22
VT No
32-1782

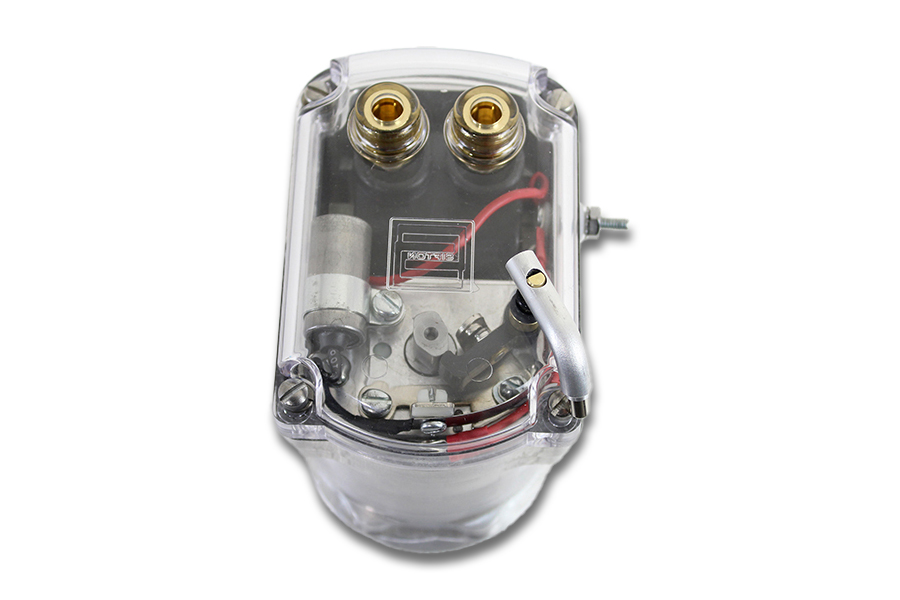

Burkhard magneto retard kit includes a clear top, gasket, ignition points and condenser kit and arm with mount pin for installation.
Burkhard magneto retard kit includes a clear top, gasket, ignition points and condenser kit and arm with mount pin for installation.
This kit is for right hand (clockwise) rotation magnetos, XLCH Panhead, clockwise when viewing points cam rotation (only). Can be used on Burkhardt, Fairbanks-Morse, Joe Hunt and Morris magnetos with left hand roation. *NOTE: This installation will retard the timing on fixed mount magnetos by shifting the points 10°, so timing is actually retarded 20° for starting. The lever is then locked in place by a rare earth magnet when in the advanced running position, by cap screws as in photo.
More Information

FITS

FL 1941-1969
XL 1957-1970
G 1937-1973
More Information
UOM1 - KIT
ManufacturerV-Twin
OriginImported
2021 Catalog Pages1305
Replacement Items32-0116 - Ignition Points and Condenser Kit
32-0644 - Magneto Clear Top Cover
32-1886 - Magneto Advance Post
32-1887 - Magneto Advance Arm with Magnet
37-1025 - Magneto Cover Screw
16-1676 - .0775" Allen Wrench
