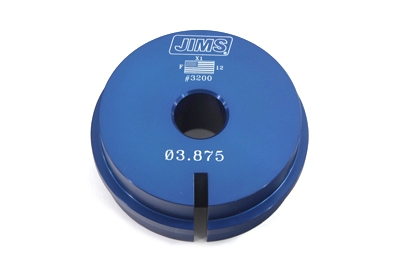

Jims Piston Ring End Gap Tool

Retail Price: $84.23
VT No
16-3200
Tool makes measuring ring end gap faster and more accurate.
Tool makes measuring ring end gap faster and more accurate.
Jims pison ring end gap tool makes measuring ring end gap faster, more accurate and will eliminate guess work. The flanged design allows the piston ring to fit squarely in the cylinder bore every time. This is the first tool that is designed to test oil ring gaps by propriety cutout feature. Just install any ring, top, 2nd, or oil control rails on the tool. Install tool into a cylinder bore and then view the ring end gap in the "key slot". Use a feeler gauge to get your end gap measurement. Eachside of the tool is made for checking standard size piston rings. Fits Twin Cam standard size pistons for 95", 103" or 110" with 3.875" or 4.00" bore.
More Information

FITS

FLT 1999-UP
FLST 1999-2017
FXST 1999-2017
FXD 1999-2017
More Information
UOM1 - EA
ManufacturerJims
OriginUSA
2022 Catalog Pages1282
Tech Note
Install tool into cylinder bore and view the ring end gap in the Key Slot. Use a feeler gauge to get your end gap measure.
