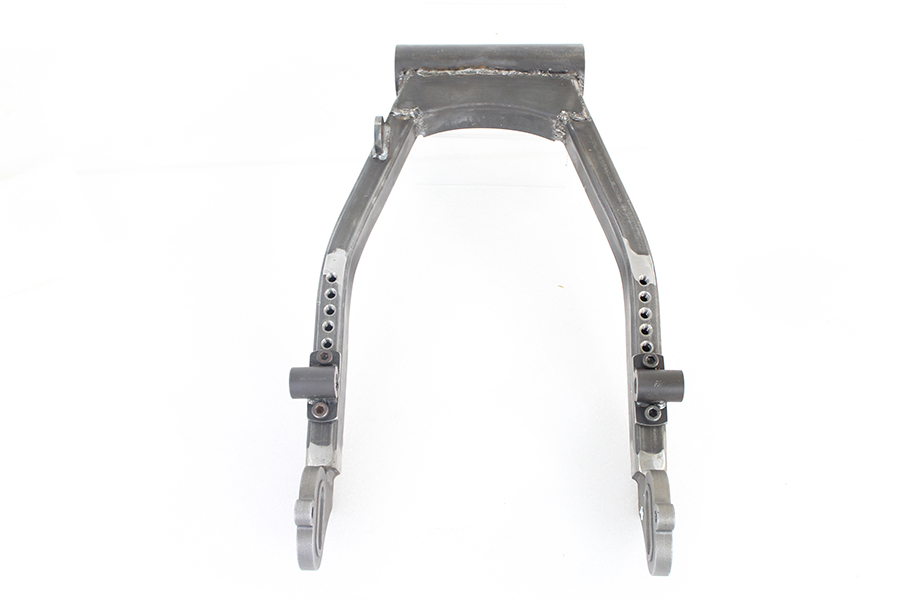

Dropped Swingarm Raw
Retail Price: $280.53
VT No
51-0783
Raw finish dropped swingarm features a raised up axle position, so this lowers the swingarm and chassis in relation to the axle. Axle slots are 3/4", for disc brake applications. Swingarm is for use with 4 speed models.
Raw finish dropped swingarm features a raised up axle position, so this lowers the swingarm and chassis in relation to the axle. Axle slots are 3/4", for disc brake applications. Swingarm is for use with 4 speed models.

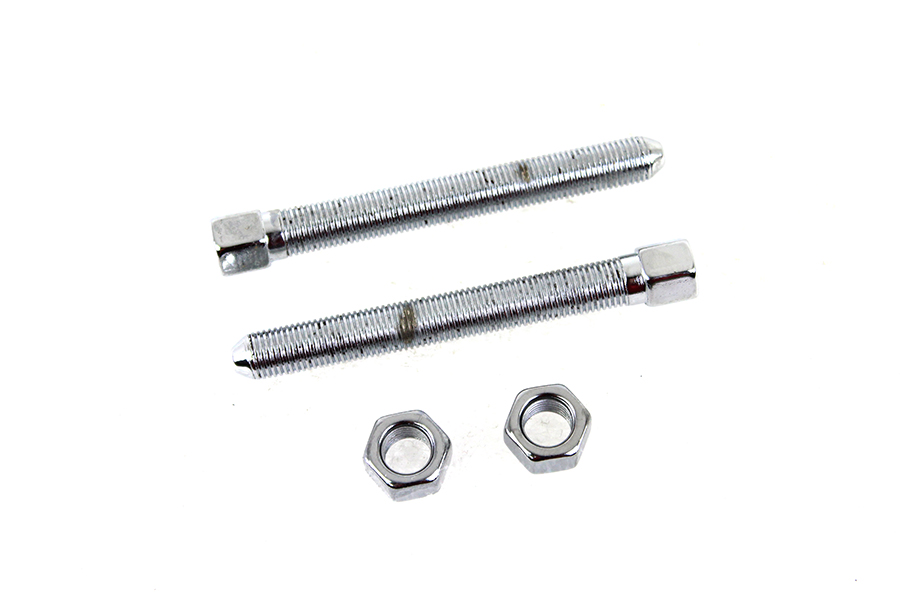

Lowers bike 2" and lengthens wheel base 1/2". 140 is the widest tire that can be used. Axle lowering plates take screw type adjusters. The blocks also have tabs to mount a sissy bar or fender brace to facilitate mounting the rear fender to the swingarm, for the "floating" rear fender look. There are 5/16 x 18 drilled and tapped holes on the swingarm for mounting and "floating". *NOTE: Must order swingarm pivot pin assembly separately. *NOTE: Race is installed, but the bearings are not included. *NOTE: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
Lowers bike 2" and lengthens wheel base 1/2". 140 is the widest tire that can be used. Axle lowering plates take screw type adjusters. The blocks also have tabs to mount a sissy bar or fender brace to facilitate mounting the rear fender to the swingarm, for the "floating" rear fender look. There are 5/16 x 18 drilled and tapped holes on the swingarm for mounting and "floating". *NOTE: Must order swingarm pivot pin assembly separately. *NOTE: Race is installed, but the bearings are not included. *NOTE: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
FITS | FX 1973-1984 chain drive models only FL 1973-1984 chain drive models only |
---|
UOM | 1 - EA |
---|---|
Finish | Raw |
Manufacturer | V-Twin |
Origin | Imported |
2025 Catalog Pages | 642 |
