Compensator Sprocket Kit 34 Tooth
Retail Price: $310.73
VT No
19-0299
OEM No: 42200064A
Premium high performance compensator kit is engineered with heavier springs and increased travel. New premium design will support the high torque output associated with high compression and large displacement engines.
Premium high performance compensator kit is engineered with heavier springs and increased travel. New premium design will support the high torque output associated with high compression and large displacement engines.
Features improved oil passages and a needle bearing thrust washer. Designed to outperform original compensators. Original equipment on 2014-2017 Dyna, Softail and 2014-2016 Touring models. Kit includes the following: Shaft Extension, Sliding Cam, Compensating Sprocket, Thrust Washers, Thrust Bearing, Sprocket Retainer, Torx Screw, and Disc Spring Set. NOTE: Some models may require the use of (2) 0.031" thick rear washer shims, which must be ordered separately. A new primary cover gasketmust be ordered separately for the proper installation of this kit.
Features improved oil passages and a needle bearing thrust washer. Designed to outperform original compensators. Original equipment on 2014-2017 Dyna, Softail and 2014-2016 Touring models. Kit includes the following: Shaft Extension, Sliding Cam, Compensating Sprocket, Thrust Washers, Thrust Bearing, Sprocket Retainer, Torx Screw, and Disc Spring Set. NOTE: Some models may require the use of (2) 0.031" thick rear washer shims, which must be ordered separately. A new primary cover gasketmust be ordered separately for the proper installation of this kit.
FITS | FLH 2007-2016 FLT 2007-2016 FXD 2006-2017 FLHXXX 2009-2013 FLT 2014-2016 stock replacement FLST 2006-2017 FXST 2007-2017 |
---|
OEM No. | 42200064A |
---|---|
UOM | 1 - KIT |
Manufacturer | York |
Origin | Imported |
2025 Catalog Pages | 215 |
Replacement Items | 13-0871 - Compensator Sprocket Spring Pack Kit |

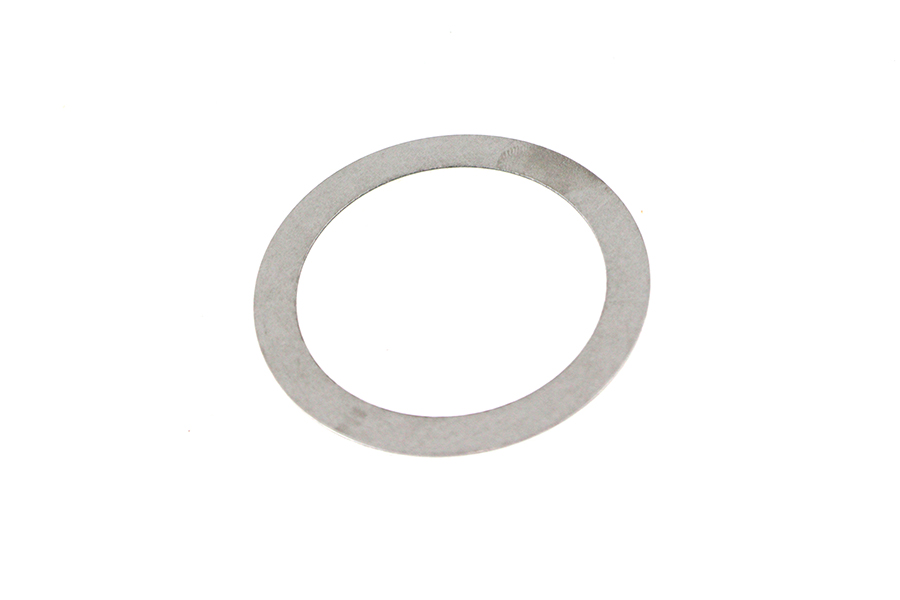

Tech Note | Required to use with #32-0870 Volt Tech Alternator Rotor for2006-11 FXD, 2007-11 Softail and 2007-10 FLT models.. Required to use with #32-0868 Volt Tech Alternator Stator Unmolded 50 Amp 3 phase for 2006 FXD models. Required to use with #12-0001 Rear Washer Shim, 2 needed. |
