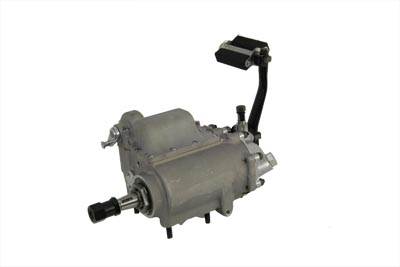

Replica 4-Speed Jockey Transmission
Retail Price: $2,359.92
VT No
17-0000
Replica 4-speed transmission is jockey type with kicker cover.
Replica 4-speed transmission is jockey type with kicker cover.
It includes original cast case with early style main drive gear, 44 rollers and 2:1 ratio speedometer drive gear, internal parts, original style aluminum kicker cover and components, clutch rod, throwout bearing, ratchet top with natural finish, kick cover with natural finish, 1941-1953 style one piece black kicker arm, mount studs, hub nut, seal and key. Transmission comes fully assembled, and has an FL style 3.00:1.00 first gear ratio. This transmission is kick starter only. No Manufacturer's Statement of Origin required, Bill of Sale only. *NOTE: This handshift transmission shifts 1-back and 3-forward. Transmission accepts 2:1 ration speedometer. *NOTE: All transmissions are fitted with a 22 tooth countershaft sprocket (V-Twin #19-0081). Various sizes available separately; 20, 26mm tooth.
It includes original cast case with early style main drive gear, 44 rollers and 2:1 ratio speedometer drive gear, internal parts, original style aluminum kicker cover and components, clutch rod, throwout bearing, ratchet top with natural finish, kick cover with natural finish, 1941-1953 style one piece black kicker arm, mount studs, hub nut, seal and key. Transmission comes fully assembled, and has an FL style 3.00:1.00 first gear ratio. This transmission is kick starter only. No Manufacturer's Statement of Origin required, Bill of Sale only. *NOTE: This handshift transmission shifts 1-back and 3-forward. Transmission accepts 2:1 ration speedometer. *NOTE: All transmissions are fitted with a 22 tooth countershaft sprocket (V-Twin #19-0081). Various sizes available separately; 20, 26mm tooth.
FITS | UL 1937-1948 EL 1936-1940 FL 1941-1964 |
---|
UOM | 1 - EA |
---|---|
Manufacturer | Motorshop |
Origin | USA |
2023 Catalog Pages | 528 |
Replacement Items | 17-2525 - 4-Speed FL Transmission Assembly 17-0754 - 4 Speed Jockey Top Assembly 18-3203 - Clutch Wafer Throw Out Bearing Kit 12-2108 - Kick Starter Cover Stud Set |
Tech Note | When using for a 1946 and earlier application the shifter arm will need to be turned 180 degrees. |
