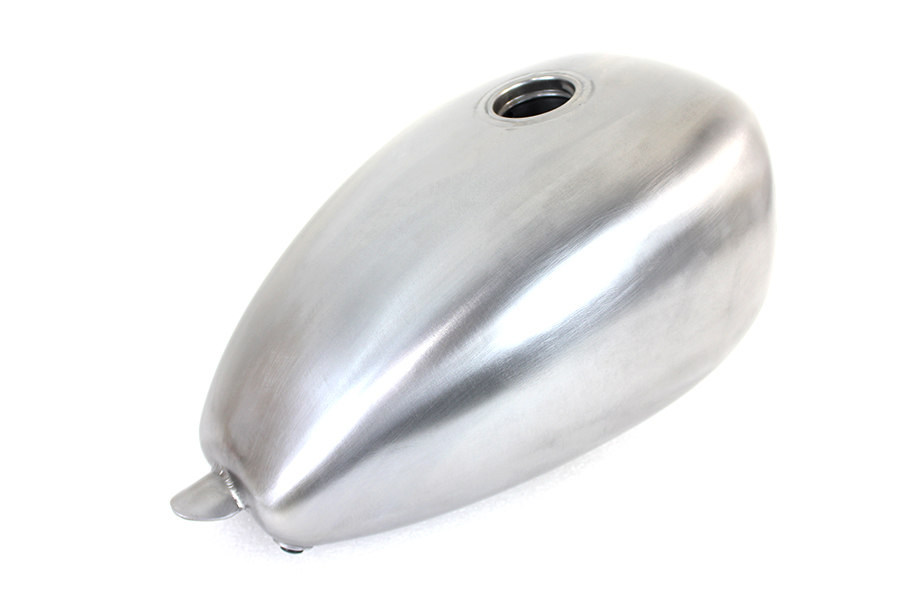

Chopper Axed 2.2 Gallon Gas Tank

Retail Price: $179.69
VT No
38-0693
Gas tank has a right side petcock opening, and a fuel capacity of 2.2 gallons. It uses a single bayonet style gas cap, and has front and rear mount tabs.
Gas tank has a right side petcock opening, and a fuel capacity of 2.2 gallons. It uses a single bayonet style gas cap, and has front and rear mount tabs.
Right side is 3/8" NPT female, left side is 1/4" NPT female for petcocks. Petcock tunnel is 2-1/2" wide. Tabs are front and rear, undrilled. Check the tank for flaws and fit before painting. It requires sanding and primer. Do not grind or sand the seams or joints. Check the petcock opening, making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. The petcock must be ordered separately. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
More Information

FITS

Custom application
More Information
UOM1 - EA
Measurements
Top Length: 16-1/4"Bottom Length: 14-3/4"Rear Width: 2-1/4"
ManufacturerWyatt Gatling
OriginImported
StyleAxed
2025 Catalog Pages1227
Tech Note
Suggested to use with #35-0400 Petcock Wing Type Chrome.
Suggested to use with #38-0310, Stock Style Gas Cap Vented
Other Notes
Front Width: 8"Rear Height: 1-1/2"Front Height: 7"

Front Tunnel Height: 3"Rear Tunnel Height: 1-1/4"Tunnel Length: 15-5/8"
