40mm CV Carburetor Kit
Retail Price: $220.67
VT No
35-1751
40mm CV carburetor kit includes a replica 40mm CV carburetor, manifold adapter, intake clamps, a late flat intake manifold seal and an adapter ring kit.
40mm CV carburetor kit includes a replica 40mm CV carburetor, manifold adapter, intake clamps, a late flat intake manifold seal and an adapter ring kit.
Throttle is operated by single pull cable operation only, not push-oull. *NOTE: Must order correct cable set for your application separately. *NOTE: Includes adapter rings to update o-ring intake port to the late flat style.
Throttle is operated by single pull cable operation only, not push-oull. *NOTE: Must order correct cable set for your application separately. *NOTE: Includes adapter rings to update o-ring intake port to the late flat style.
FITS | FX 1970-1984 FL 1978-1984 |
|---|
| UOM | 1 - KIT |
|---|---|
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 230 |
| Replacement Items | 35-0085 - Replica Alloy Intake Manifold 35-9150 - CV Carburetor Adapter Flange 35-0447 - CV Carburetor Enrichment Assembly 14-0180 - 40mm V-Twin CV Intake Manifold Seal 35-0448 - Power Intake Manifold Clamp Kit with Flat Seals 30- |

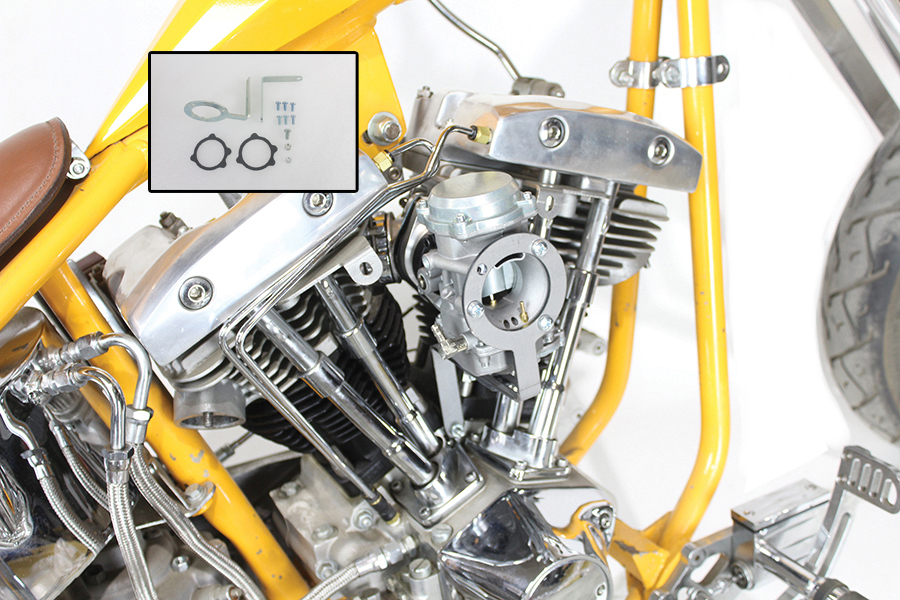

| Tech Note | Suggested to use with #34-0202 Chrome Air Cleaner Support Bracket. Suggested to use with #36-0858 (stock) or #36-0861 (+8") Black Throttle and Idle Cable Set, for 1996-up Softail, FXD,and FLT models. Suggested to use with #36-0859 (stock) or #36-0862 (+8") Black Throttle and Idle Cable Set, for 1990-95 Softail, FXD,and FLT models. Suggested to use with #36-0860 (stock), #36-0863 (+8") or #36-2561 (+12") Black Throttle and Idle Cable Set, for 1981-89 Softail and FLH models. Suggested to use with #31-9900 CV Carburetor Support BracketKit Zinc Plated. |
