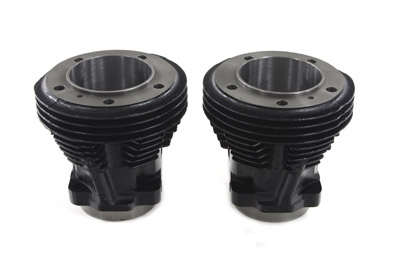

3-5/8" Cylinder Set
Retail Price: $305.31
VT No
11-0385
Cylinders are .200 taller than stock height cylinders.
Cylinders are .200 taller than stock height cylinders.
For installation of 3-5/8" cylinders after spigot holes have been enlargedto 3.8750". (See diagram for photos.) Cylinders are honed to a finished bore size of 3.6270 and are required to break in as suggested in the shop manual. Set of two cylinders only. Order 3-5/8" standard size pistons and rings separately. These cylinders will require crankcase cylinder spigot holes to be bored out to 3.8750". Disassmbly of engine is required to install these cylinders. *NOTE: 3-5/8" cylinders are drilled to use with 4-1/2" stroke. *NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.
For installation of 3-5/8" cylinders after spigot holes have been enlargedto 3.8750". (See diagram for photos.) Cylinders are honed to a finished bore size of 3.6270 and are required to break in as suggested in the shop manual. Set of two cylinders only. Order 3-5/8" standard size pistons and rings separately. These cylinders will require crankcase cylinder spigot holes to be bored out to 3.8750". Disassmbly of engine is required to install these cylinders. *NOTE: 3-5/8" cylinders are drilled to use with 4-1/2" stroke. *NOTE: All cast iron cylinders have same piston to wall clearance .0025 -.003.
FITS | FLT 1979-1983 FX 1971-1984 FXR 1982-1983 FL 1966-1984 |
|---|
| UOM | 1 - SET | |
|---|---|---|
| Measurements |
| |
| Manufacturer | Motorshop | |
| Origin | Imported | |
| 2025 Catalog Pages | 537 | |
| Tech Note | Suggested to use with #11-0283 3-5/8" Piston Set Standard. Suggested to use with #11-0289 84" Shovelhead Cylinder Kit. |
