16" x 3.00" Rear Spoke Wheel
Retail Price: $514.65
VT No
52-0176

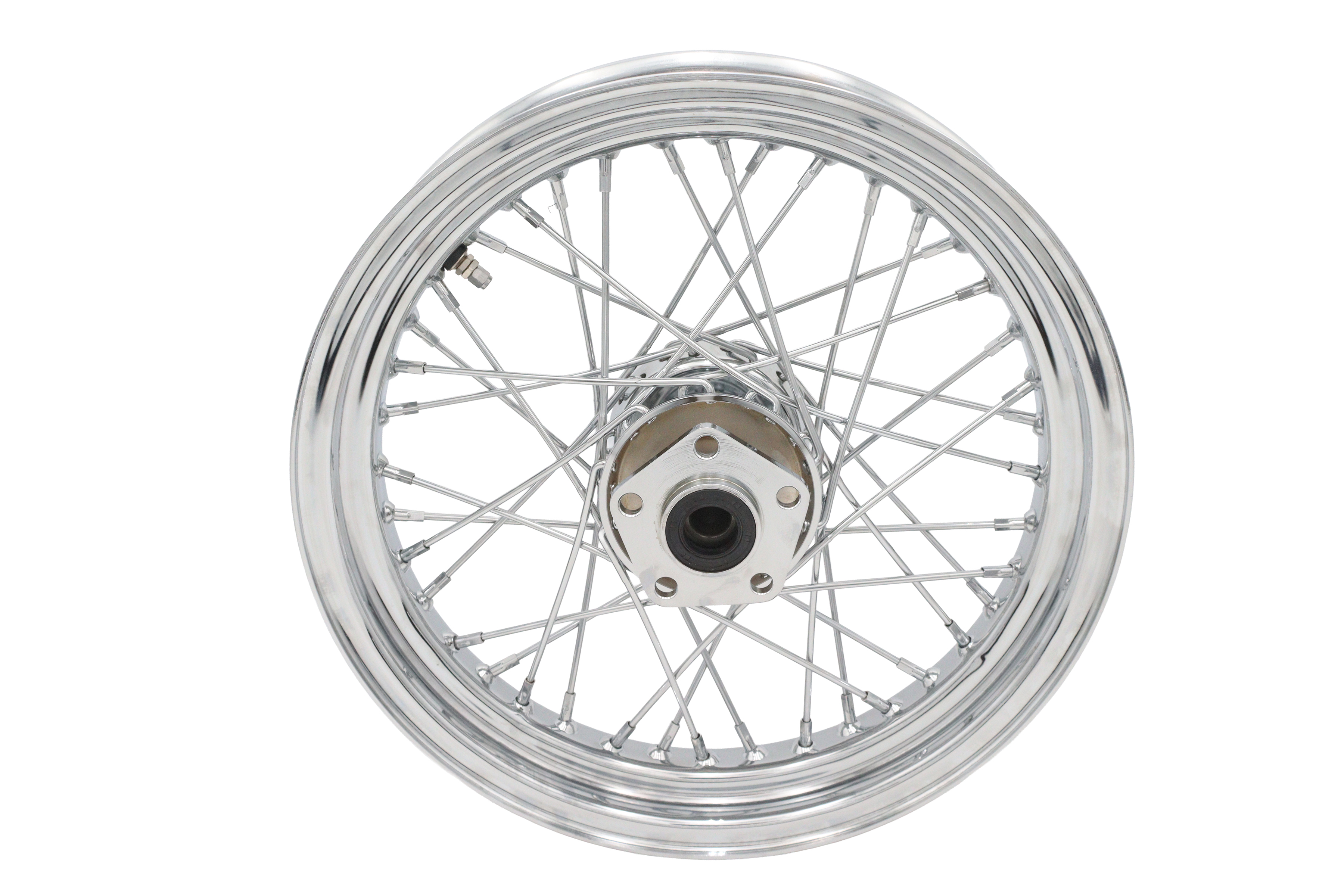

Wheel features a 16" X 3.00" chrome rim, chrome hub with internals, and 40 chrome spokes.
Wheel features a 16" X 3.00" chrome rim, chrome hub with internals, and 40 chrome spokes.
The flange of the hub measure 7" between each other. *NOTE: 32mm on the pulley side, valve stem side. 27mm offset on the disc side. Wheel is laced and trued. Accepts a 130-140 tire size. Bearing is pressed, no snap ring included. **NOTE: All spokes on wheel need to be inspected and re-torqued after 500 miles of original installation.
The flange of the hub measure 7" between each other. *NOTE: 32mm on the pulley side, valve stem side. 27mm offset on the disc side. Wheel is laced and trued. Accepts a 130-140 tire size. Bearing is pressed, no snap ring included. **NOTE: All spokes on wheel need to be inspected and re-torqued after 500 miles of original installation.
FITS | FXRS 1986-1994 FXDWG 1991-1996 FXDL 1991-1996 XL 1986-1999 FLST 1986-1996 FXR 1986-1994 FXSTC 1986-1996 FXST 1986-1996 FXD 1991-1996 |
|---|
| UOM | 1 - EA | |
|---|---|---|
| Measurements |
| |
| Location | Rear | |
| Manufacturer | V-Twin | |
| Origin | Imported | |
| 2025 Catalog Pages | 461 | |
| Replacement Items | 52-0222 - 16" X 3.00" Rear Rim Drop Center 45-0621 - Chrome 16" Spoke Set | |
| Tech Note | Rim width is measured by the distance between the rim flanges. |
