XR/WR Inner Magneto Mount Plate
Retail Price: $128.47
VT No
32-1570

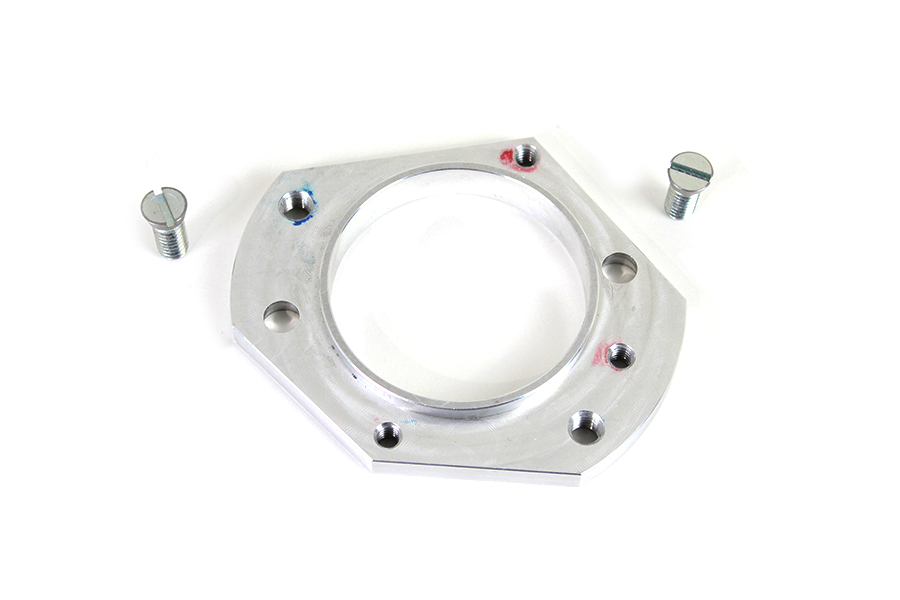

XR/WR inner magneto mount plate with the magneto adapter screw set, allows magneto to rotate on mount plate to adjust timing and magneto position.
XR/WR inner magneto mount plate with the magneto adapter screw set, allows magneto to rotate on mount plate to adjust timing and magneto position.
For use with the Burkhardt Magneto Assembly. Requires the separate purchase of a collar to hold the Magneto rotor in place. *NOTE: Machining modification to the left side case is necessary for installation. *NOTE: Includes 4 - 1/4"-20 x 3/8" flathead allen screws.
For use with the Burkhardt Magneto Assembly. Requires the separate purchase of a collar to hold the Magneto rotor in place. *NOTE: Machining modification to the left side case is necessary for installation. *NOTE: Includes 4 - 1/4"-20 x 3/8" flathead allen screws.
FITS | WR 1947-1952 |
|---|
| UOM | 1 - EA |
|---|---|
| Manufacturer | Volt Tech |
| Origin | Imported |
| 2025 Catalog Pages | 1302 |
| Replacement Items | 32-1591 - Magneto Adapter Screw Set |

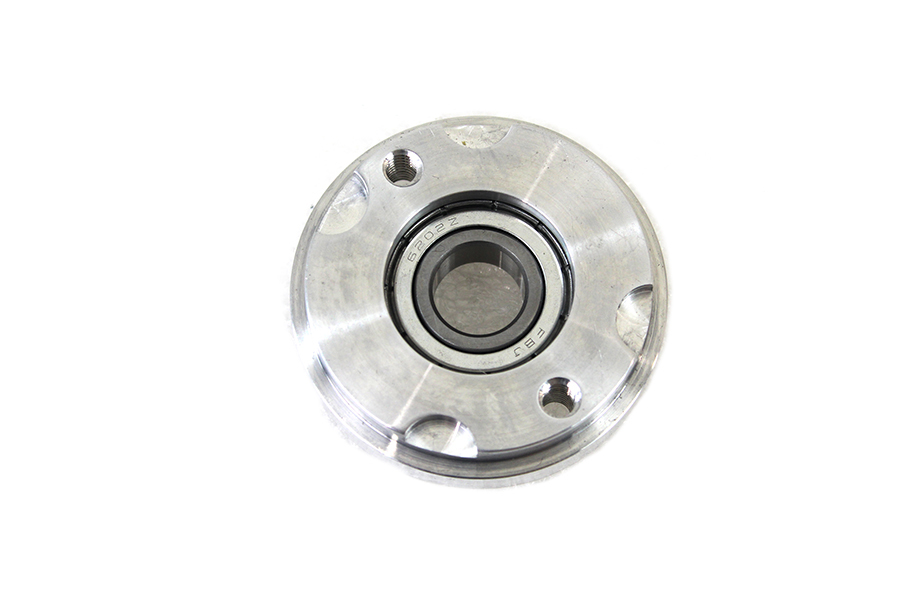

| Tech Note | Suggested to use with #32-1947 Burkhardt Magneto Assembly. Suggested to use with #32-1627 Magneto Rotor Collar with Bearing. |
