4-Speed Transmission Case
Retail Price: $495.95
VT No
43-9185

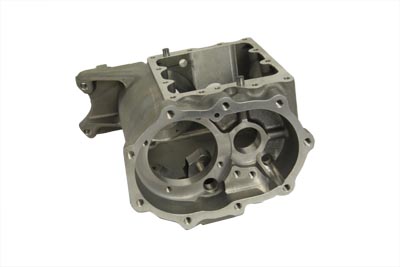

4-speed transmission bare case features a natural finish as the original. Case sub assembly with additional components installed.
4-speed transmission bare case features a natural finish as the original. Case sub assembly with additional components installed.

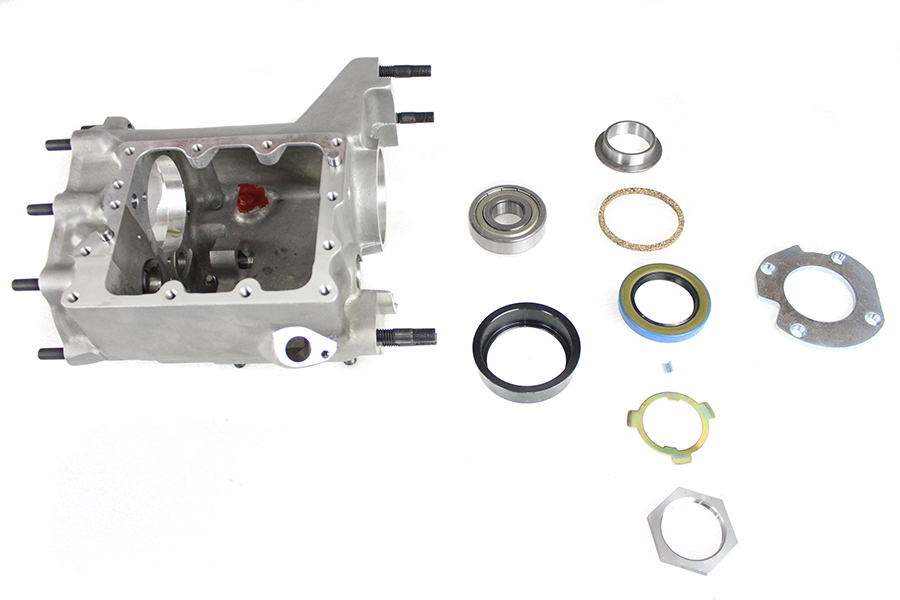

Includes 4th gear race, right side ball bearing, countershaft bushings kick stud, primary studs and lock plate. Includes 3 sets of studs installed with the following protrusions: kicker - 7/8" (22.2mm), mount - 15/16" (23.8mm) and the inner primary 15/16" (33.8mm), for kick start applications. Case includes extra components installed for ease of assembly. *NOTE: When installing kicker cover studs, the studs should protrude 7/8" from transmission case face, so that after installation of kicker covers, nut covers threads.
Includes 4th gear race, right side ball bearing, countershaft bushings kick stud, primary studs and lock plate. Includes 3 sets of studs installed with the following protrusions: kicker - 7/8" (22.2mm), mount - 15/16" (23.8mm) and the inner primary 15/16" (33.8mm), for kick start applications. Case includes extra components installed for ease of assembly. *NOTE: When installing kicker cover studs, the studs should protrude 7/8" from transmission case face, so that after installation of kicker covers, nut covers threads.
FITS | FX 1971-1976 FL 1965-1976 |
---|
UOM | 1 - EA |
---|---|
Origin | Imported |
2025 Catalog Pages | 530 |
Replacement Items | 12-2104 - Transmission Mount Case Stock Studs 12-2113 - Mount Stud Set for Inner Primary Cover 37-9194 - Well Nut 17-0690 - Mainshaft Bearing Race Standard |
Tech Note | °NOTE: Kicker cover studs installed to accept electric startand battery box mounts. (9 total) °4-studs for inner primary installed. °4 studs for transmission mounting installed. °Countershaft bushings installed with oil groove in the correct direction. |
